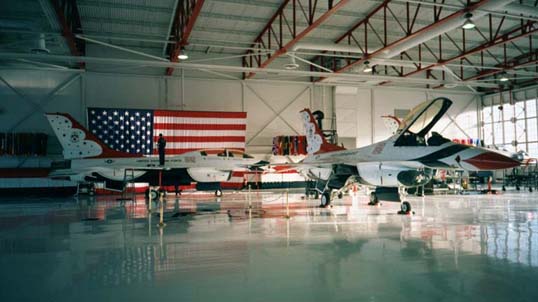

Above Photo Copyright © 2001 SRA Brock Meldon

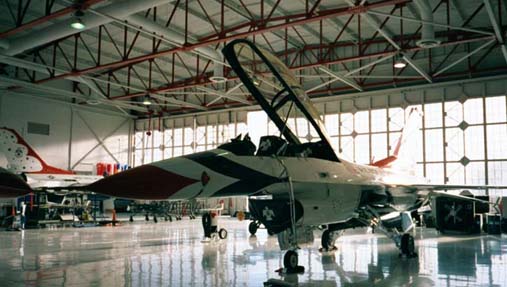

Above Photo Copyright © 2001 SRA Brock Meldon
|
F-16 Specifications
|
Manufacturer: Lockheed
Power Plant F-16C/D:
one Pratt and Whitney F100-PW-200/220/229 or
one General Electric F110-GE-100/129
Thrust F-16C/D, 27,000 pounds(12,150 kilograms)
Length 49 feet, 5 inches (14.8 meters)
Height 16 feet (4.8 meters)
Wingspan 32 feet, 8 inches (9.8 meters)
Speed 1,500 mph (Mach 2 at altitude)
Ceiling Above 50,000 feet (15 kilometers)
Maximum Takeoff Weight 37,500 pounds (16,875 kilograms)
Combat Radius [F-16C]
740 nm (1,370 km) w/
2 2,000-lb bombs + 2 AIM-9 + 1,040 US gal external tanks
340 nm (630 km) w/
4 2,000-lb bombs + 2 AIM-9 + 340 US gal external tanks
200 nm (370 km) + 2 hr 10 min patrol
w/ 2 AIM-7 + 2 AIM-9 + 1,040 US gal external tanks
Range Over 2,100 nm (2,425 mi; 3,900 km)
Armament One M-61A1 20mm multibarrel cannon with 500 rounds;
external stations can carry up to six air-to-air missiles, conventional air-to-air and air-to-surface munitions and electronic countermeasure pods.
|
|
|
|
|
